| Product name | tiller assy' VS bulk parts |
| Part number | 1000114004 Left driving knob |
| 1000114001 Horn button | |
| 1000114003 Right driving knob | |
| 1000103001 Upper part of the handle | |
| 1000103003 Under part of the handle | |

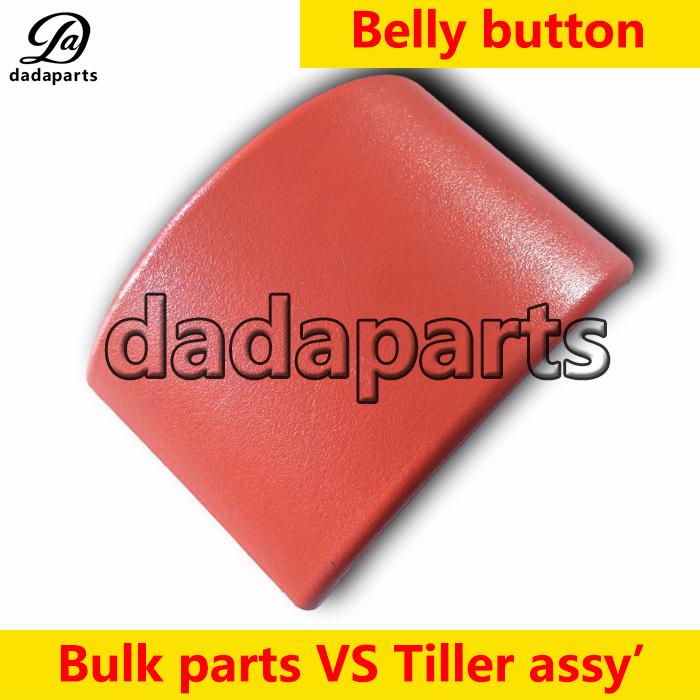

| 1000114002 belly button | |
| 1000134003 Accelerator | |
| 1000113002 Shaft sleeve | |
| used for | 1-2T electric pallet truck/stacker |
Related products
1 0000023008 Screw 2
2 0000025003 Spring washer 2
3 1000114004 Left driving knob 1
4 1000113002 Shaft sleeve 2
5 1000134002 Micro switch 4
6 1000100015 Installation frame of lowering button 1
7 1000114001 Horn button 1
8 1000131001 Spring of horn button 1
9 1000100016 Installation frame of lifting button 1
10 0000023009 Tapping screw 8
11 1000103004 Splint 1
12 1000134003 Accelerator 1
13 1000114003 Right driving knob 1
14 1000114002 Emergency reversing button 1
15 1000131002 Spring for emergency reversing button 1
16 1000103001 Upper part of the handle 1
17 1000103003 Under part of the handle
18 0000023053 Screw
19 0000023046 Bolt
20 0000025001 Spring washer
21 1040101001 Welded handle lever
22 1000123001 Screw
23 1030418001 Sleeve
24 1040121002 Air spring
25 1040113002 Screw
26 1040119001 Bumper cushion
27 1040113002 Bush
28 1040123002 Linking screw
29 1040103002 Travel switch block
30 0000023315 Screw
1000100008 Noblelift handle knob assembly 1
