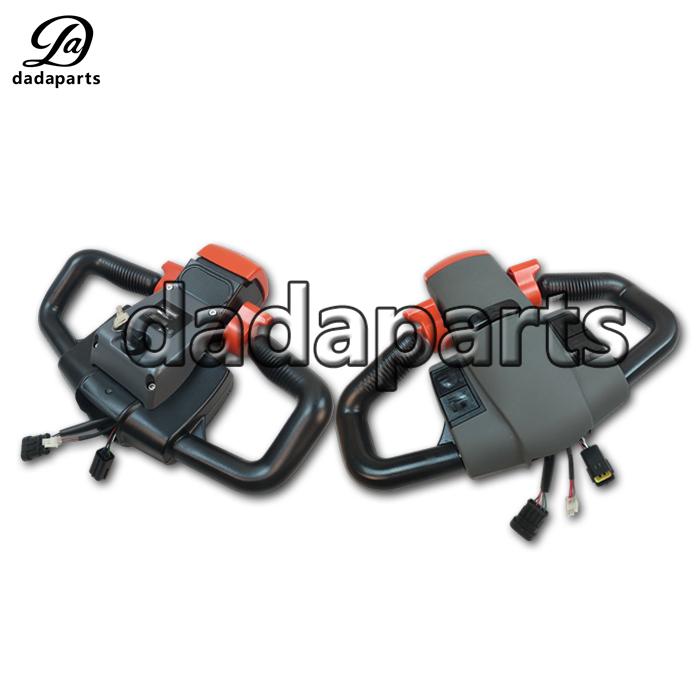

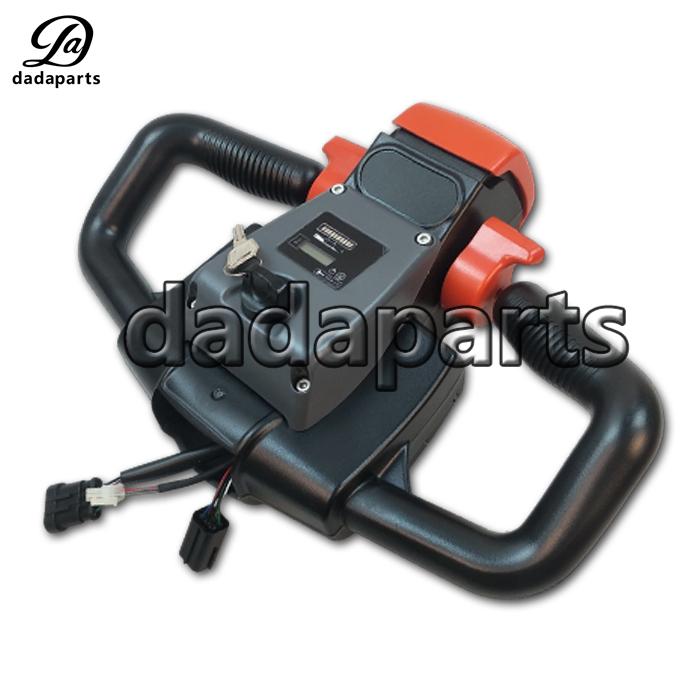

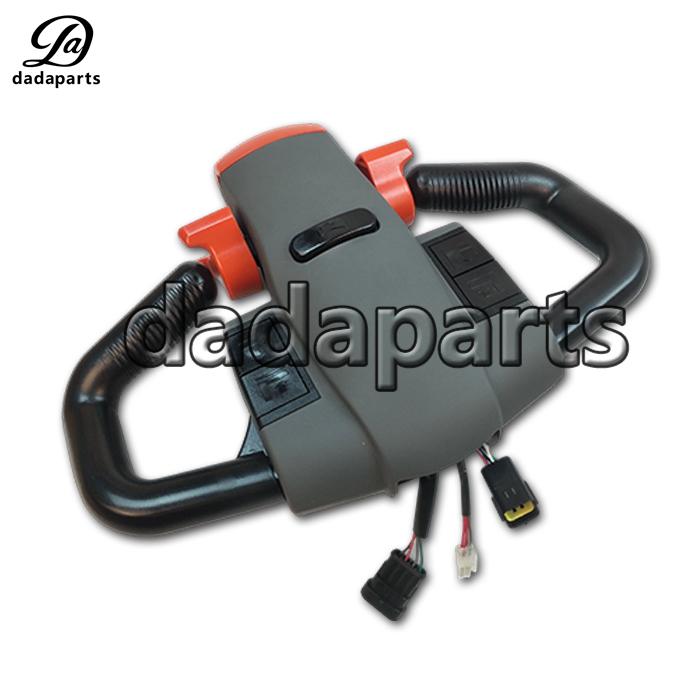

1115-34000Z-LD control handle assy’ 1115-340000-10-40 for 1.5-2T electric pallet truck
| Product name | control handle assy' |
| Part number | 1115-340000-10-40 |
| 1115-34000Z-LD | |
| Used for | electric pallet truck 1.5-2T |
Description
| Product name | control handle assy’ |
| Part number | 1115-340000-10-40 |
| 1115-34000Z-LD | |
| Used for | electric pallet truck 1.5-2T |
1 1115-341000-00-10 Cap Assembly See 030401
2 1115-340004-00 Travelling Knob L
2 1115-340005-00 Travelling Knob R
2 1115-340010-00 Travelling Knob
3 0000-000038-00 Lockwasher ø3
4 0000-000037-00 Screw M3×12
5 1115-340006-00 Seat
6 1114-500007-00 Power Module
7 1220-520008-0C Accelerator
7 1120-340004-00-01 Accelerator
8 0000-000323-00 Screw M5×16
9 0000-000390-00 Flatwasher ø5
10 1115-340007-00 Wire Harness Cover
11 1120-520009-00 Reversing Switch Wire
12 0000-000989-00 Screw M2×12
13 1115-340003-00 Cover
14 1121-310004-00 Spring
15 1115-340002-10 Cover
16 0000-000322-00 Screw M8×25
17 0000-000159-00 Lockwasher ø8
18 0000-000176-00 Flatwasher ø8
19 1115-340001-00 Washer
20 1115-520019-0A 2-Way Key Switch Assembly
21 1114-310001-00 Bottom Cover
22 0000-001322-00 Screw M5×50
23 0000-000666-00 Screw M3×8
24 0000-000991-00 Flatwasher ø3
